OBS-Ds
Disposable button control


Place of Origin:Guangdong, China
Brand Name:OBS
Model Number:#0069
Properties:The Basis of Surgical Instruments
Type:Knife
Sterilization:EO
Cable Lenght:3m/5m
Case Lenght:16.0cm
Plug:3-pin plug
Tube Lenght:3m/30cm

Consultation

Video Description

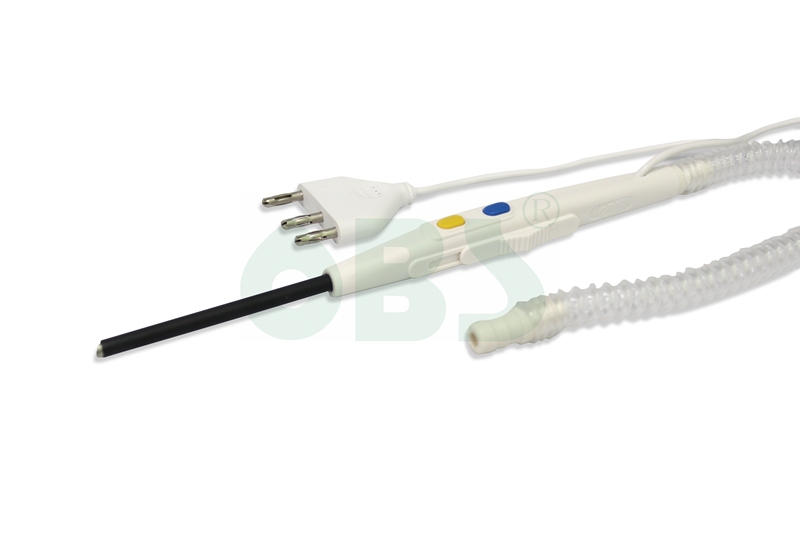

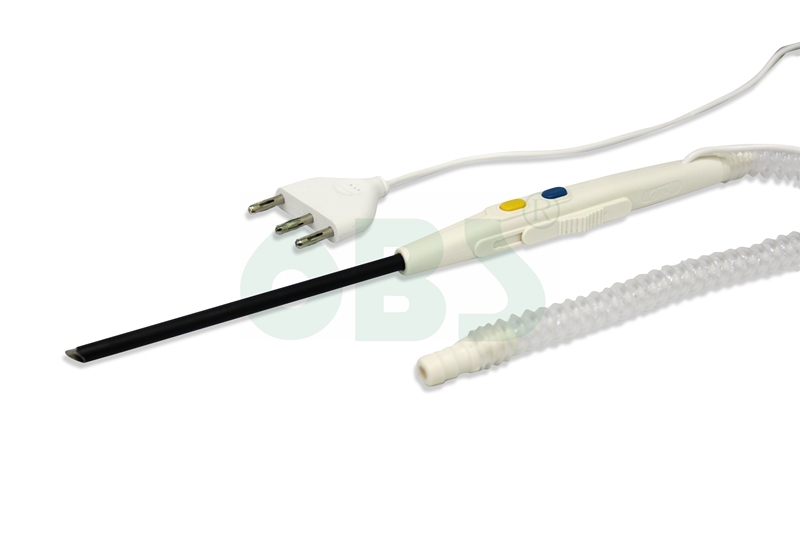

Disposable Electrosurgical Pencil( Disposable ESU Pencil,  Cautery Pencil )

FDA 510(k) Approval

Company FDA Registation No.: 3007748793

Device K No.:K092634

CE Mark


Range of Using:


Match with Electrosurgical Generator(Unit), Radio Frequency Generator(Unit) and other High Frequency Equipment.


Type:


D: Disposable

These devices are single use supplied sterile. Check plug matching on generator base and connect. Press CUT/yellow button for cutting and COAG/blue button for coagulation,push button on side for shortening and extending the suction tip.Maximum voltage is not be exceed 90KV peak


Product feature:


Equip with smoke and liquid suction function. Flexible electrode tip can be extended from suction tube when cut or coagulate and shortened from suction tube when suck.

Switches have a high level of tactile feedback - surgeons can hear and feel the switch engage, preventing accidental activation of the device.


Designed with the surgeon in mind

-Slim and lightweight, tapered ergonomic design, streamlined design,

-Slip-proof handling and water resistant Rocker or Push-Button Switch

-Switch and buttons designed for smooth activation

-Equip with a range of monopolar cutting and coagulation electrodes to satisfy all users requirements.

-With hexagonal shape to protect against inadvertent twisting, the electrodes can be locked safely into place and are easily exchanged and replaced.


Models:

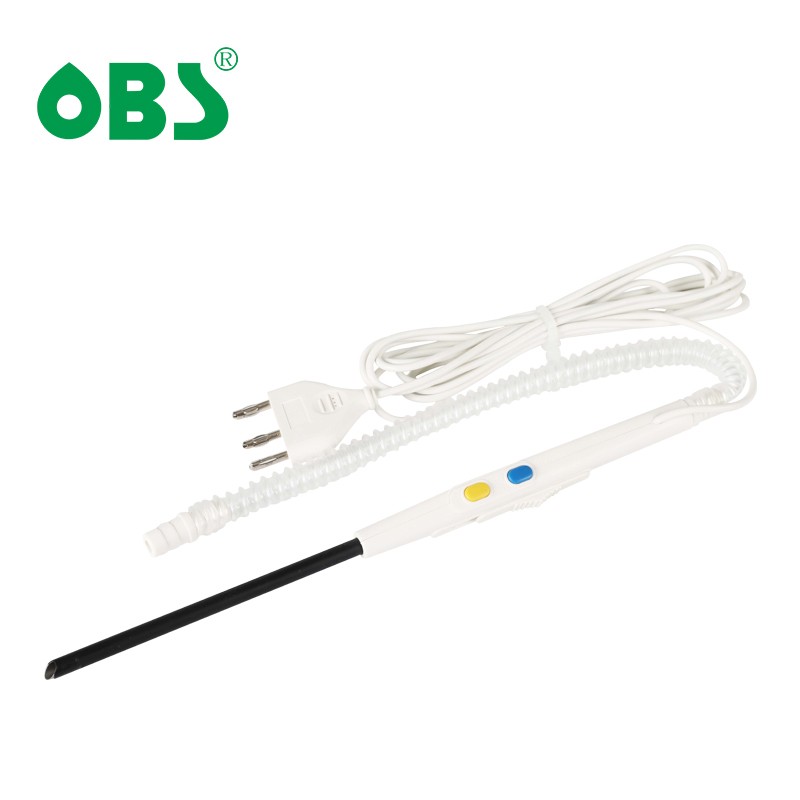

OBS-DS(图1)


#0069-01,equiped with 25mm length of suction tube

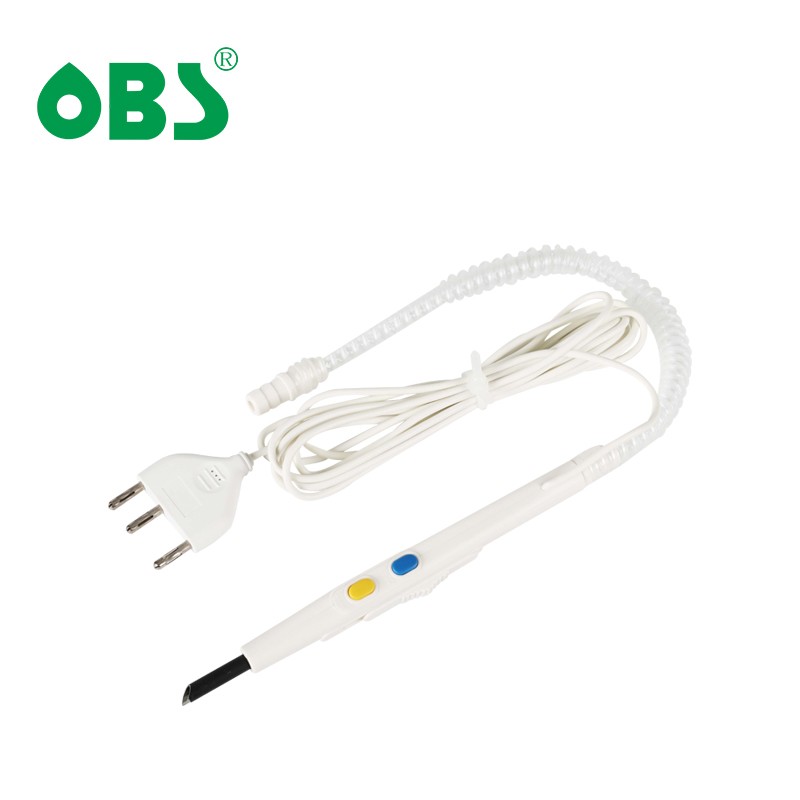

OBS-DS(图2)


#0069-02,equiped with 85mm length of suction tube

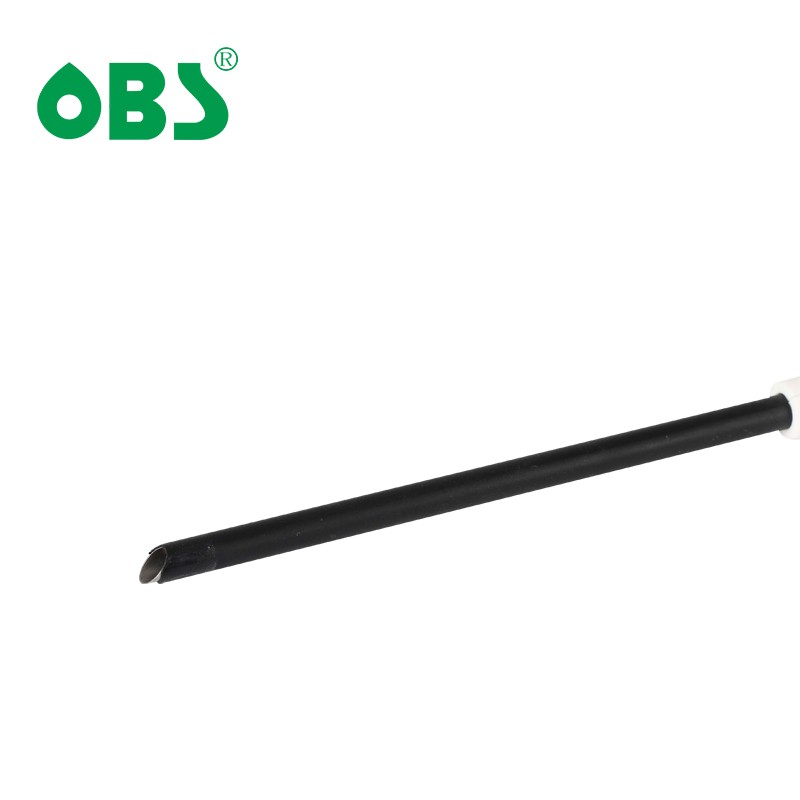

OBS-DS(图3)


#0069-03,equiped with 130mm length of suction tube

Product Details

Shorten the electrode in suction

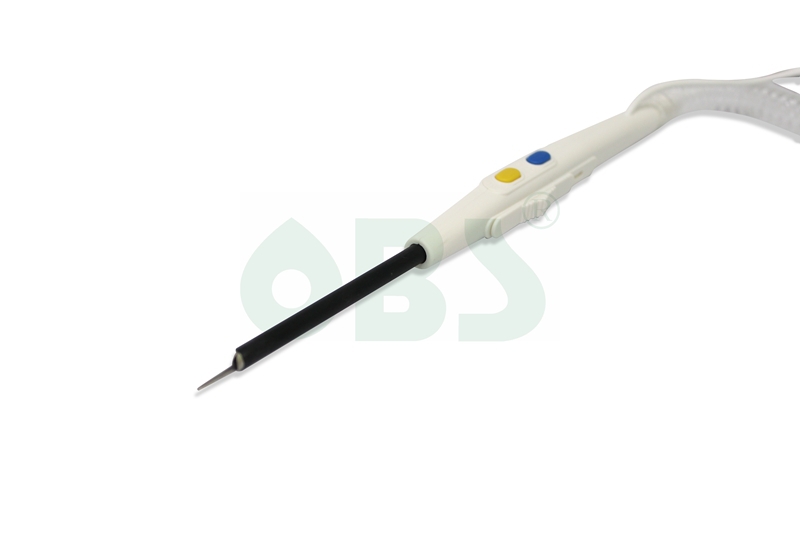

Extend the electrode in cutting or coagulation.



OBS-DS(图4)

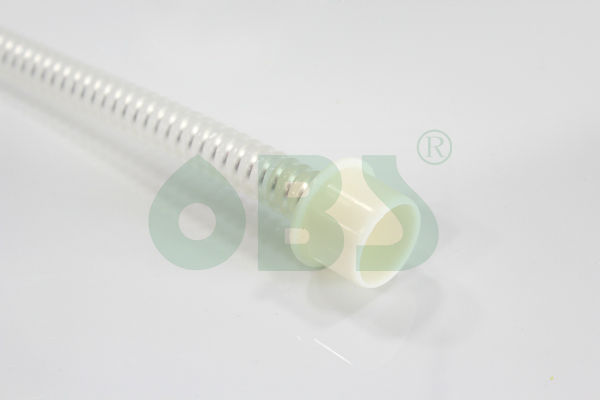

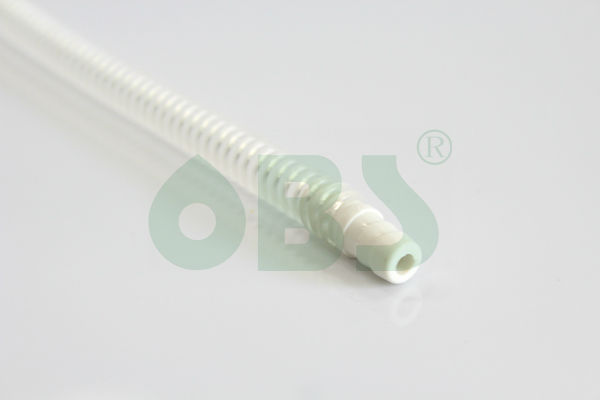

Tube ends for selection to be fit with the suction machine



OBS-DS(图5)




OBS-DS(图6)



Warning


These devices should never be used when:

There is visible evidence of damage to the exterior of the device such as cracked or damaged plastic or connector damage.

These devices fail the inspection described herein.

In the presence of flammble gases, flammable prep solutions or drapes. Oxidizing. Gases such as Nitrous Oxide (N2O),or in oxygen-riched environments.

Do not used monopolar electrosurgery on small appendages, as in circumcision or finger surgery.
